Quick-fit Buckled Flood Door (BSI Testing)

When flood strikes, every minute counts. The FH-01 is engineered for speed — no tools required, two-person operation, fully deployed in minutes to protect your building’s critical openings.

Key Features

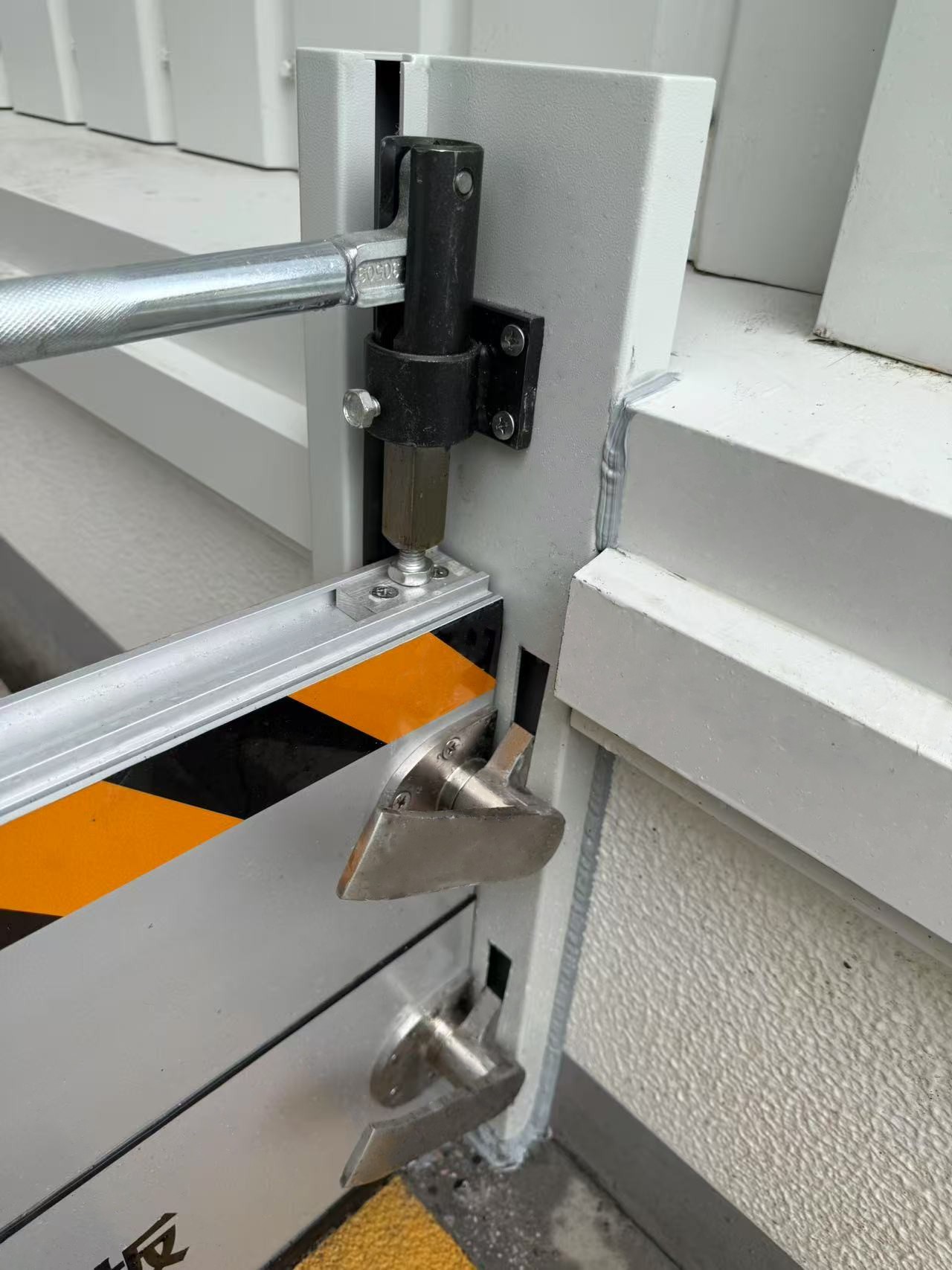

  • Fast Buckle Mechanism — Mechanical clip-lock design eliminates bolts, enabling rapid deployment and removal

  • Modular Configuration — Single or multi-panel arrangement to fit openings of varying widths

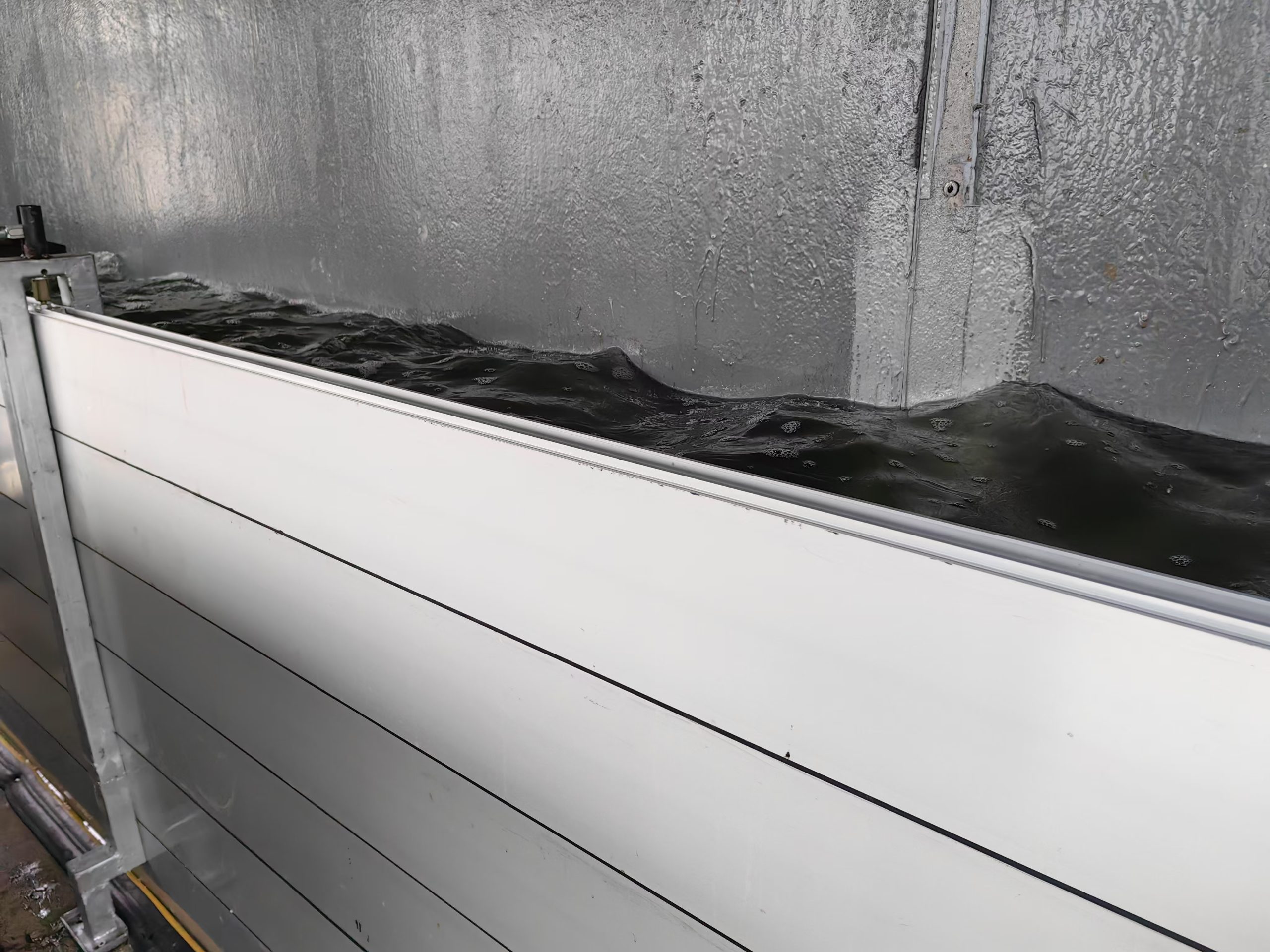

  • Multi-Layer Sealing — Stacked EPDM gaskets effectively block hydrostatic pressure pathways, compliant with BSI leakage rate standards

  • Lightweight & Durable — Aluminium alloy body with SUS304 stainless steel and zinc alloy hardware, built for long-term outdoor and high-humidity environments

  • Low Maintenance — Simple structure with clear inspection points; periodic checks are all that’s needed to maintain performance

Span Configuration Guide

  • Up to 4 m

- Standard (no top compression post), Simplest setup, fastest deployment.

  • 4 m – 6 m

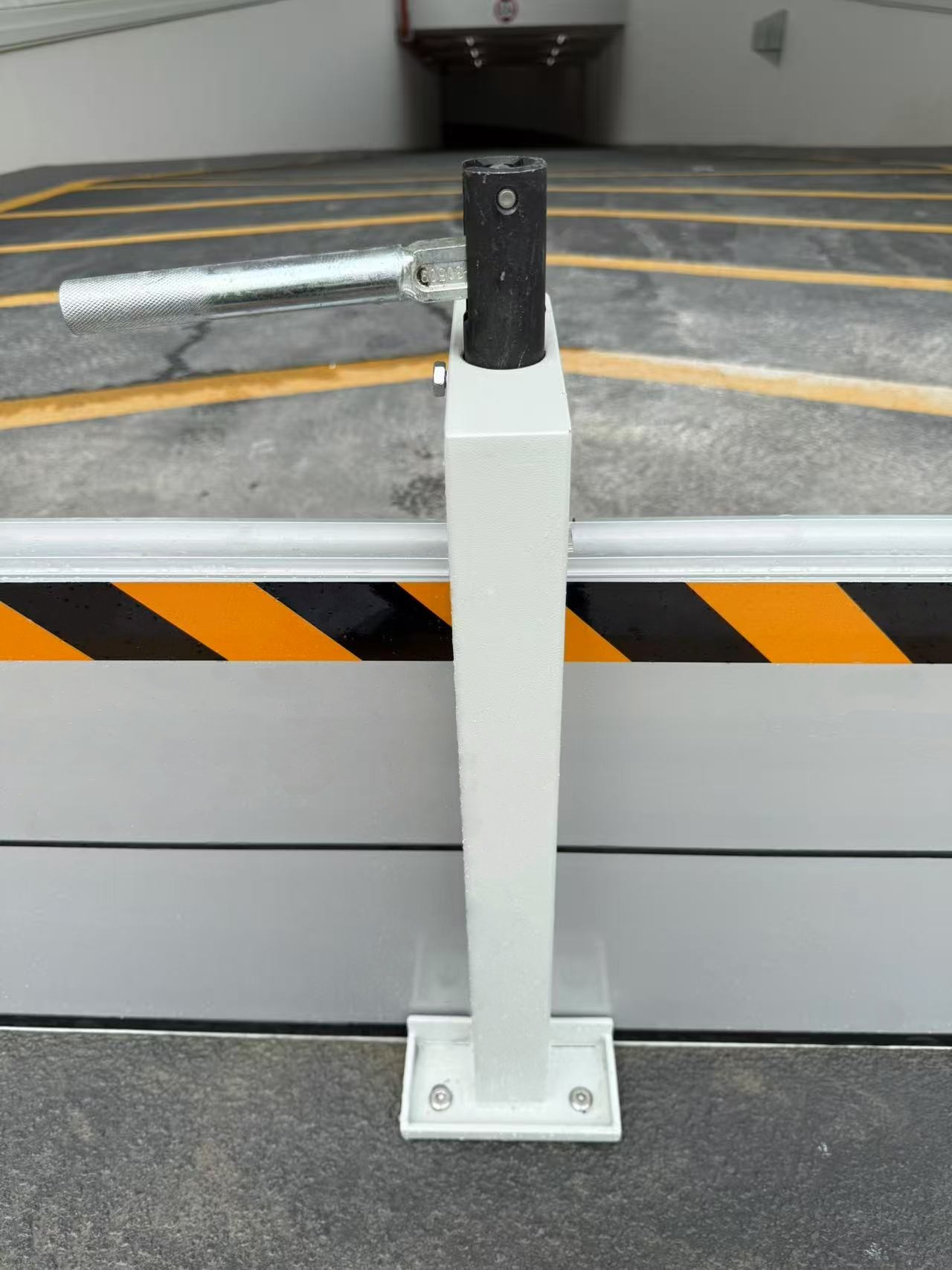

- With top compression post, Controls mid-span deflection for uniform sealing.

  • Above 6 m

- With centre stop + diagonal brace, Supports continuous flood wall, unlimited extension.

Applications

  • Industrial facilities / Semiconductor cleanroom entrances

  • Logistics park perimeter flood barriers

  • Electrical rooms / Critical equipment enclosures

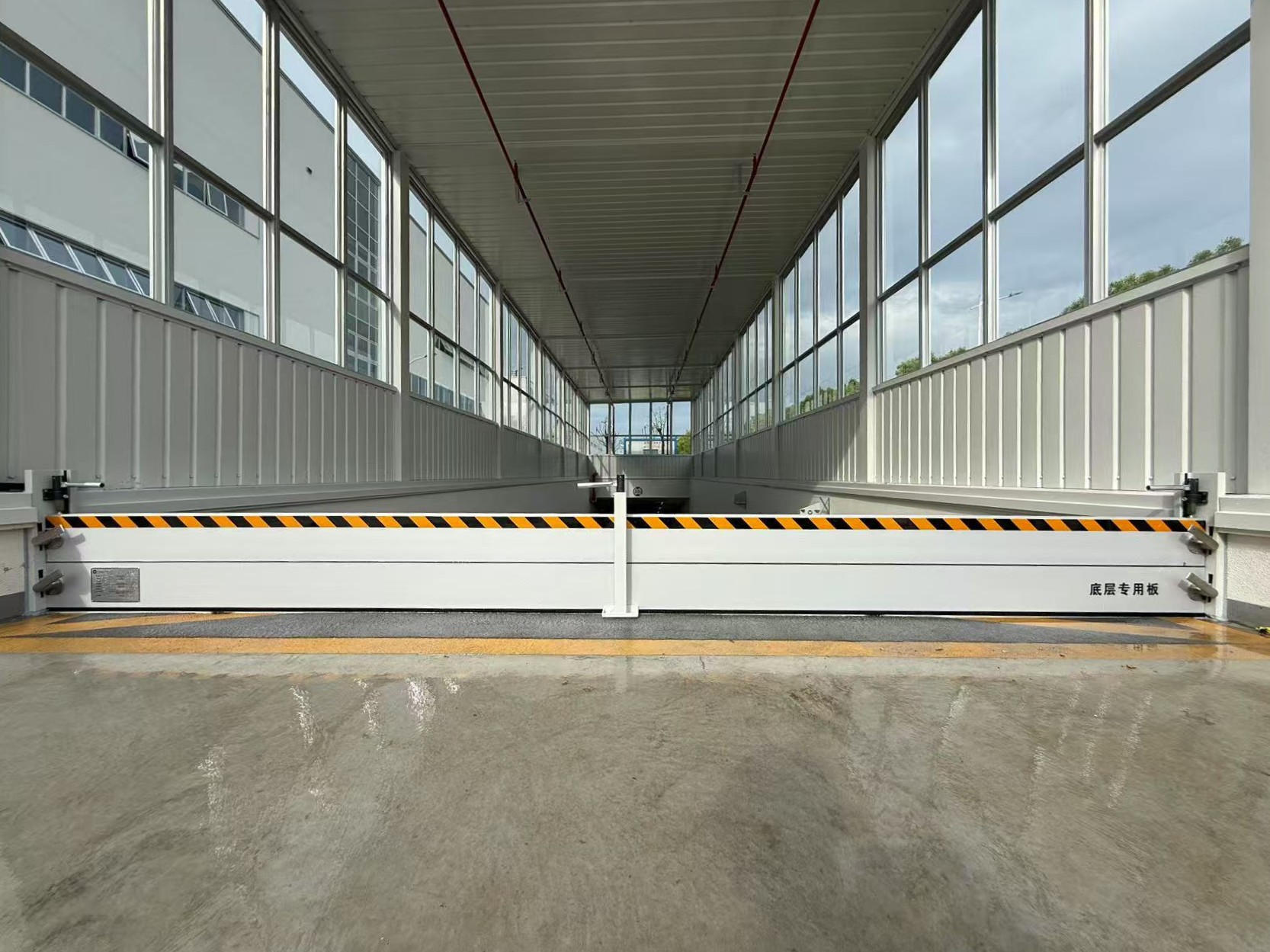

  • Underground car park ramp openings

  • Infrastructure perimeter protection

Support & Delivery

Full-service support including site assessment, installation guidance, and long-term technical consultation to help you build a complete flood protection solution.
